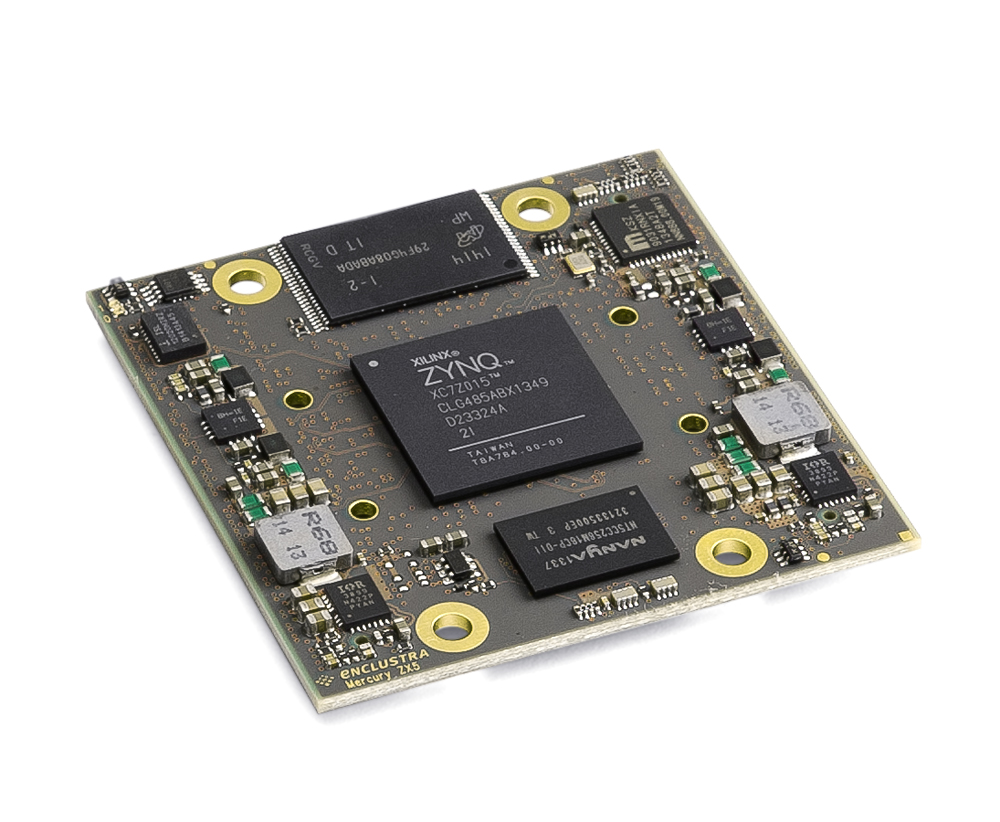

Mercury ZX5 SoC SOM/7Z015
發布者: Enclustra GmbH
The Mercury ZX5 system-on-chip (SoC) module combines the AMD Zynq 7000 SoC device with fast DDR3 SDRAM, NAND flash, quad SPI flash, a Gigabit Ethernet PHY and an RTC and thus forms a complete and powerful embedded processing system.
The Mercury ZX5 SoC module reduces development effort, redesign risk and improves time-to-market for your embedded system.
主要特性與優勢
- A complete and powerful embedded processing system in a compact form factor
- Up to 1024 MBytes of high-bandwidth DDR3L SDRAM
- Available in industrial and commercial temperature range
- Built around the AMD Zynq 7000 SoC
- Fast boot times and plenty of non-volatile memory space due to the NAND flash
- Lowest power consumption due to the high-efficiency DC/DC converters
- Support for Linux, eCos and VxWorks embedded operating systems
- Combines the flexibility of a CPU system with the parallel processing power and real-time capabilities of an FPGA system
- Linux Board Support Package (BSP) and tool chain available
包裝內容物含配件
- 178 total user I/Os
- 3D STEP Model
- 512 MB NAND flash
- 64 MB quad SPI flash
- Gigabit Ethernet PHY
- I/O nets length
- Linux Board Support Package (BSP): Compile Linux with the Enclustra Build Environment with a few clicks
- Module Configuration Tool (MCT): Configure FPGA, program flash memory, read module information (type, serial number), monitor currents, configure real-time-clock (RTC)
- PCB Footprint
- PCIe Gen2 x4
- Reference Design
- Small form factor (56 × 54 mm)
- USB 2.0 PHY
- Up to 1 GB DDR3 SDRAM
- User Manual
- User schematics
