Mars ZX3 Zynq 7000 SoC SOM/7Z020/C
發布者: Enclustra GmbH

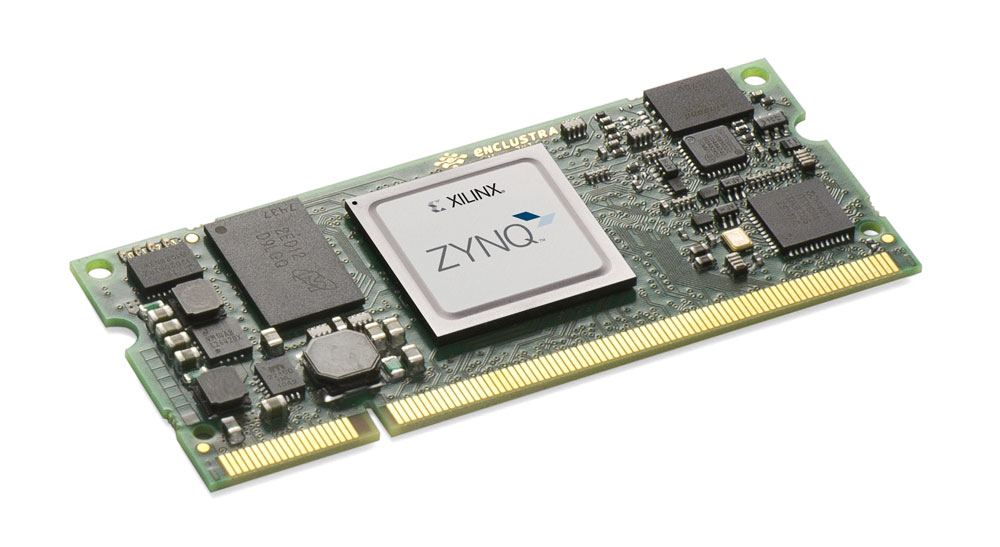

The Mars ZX3 system-on-chip (SoC) module combines the AMD Zynq 7020 adaptive SoC device with fast DDR3 SDRAM, NAND flash, quad SPI flash, a Gigabit Ethernet PHY and an RTC and thus forms a complete and powerful embedded processing system.
The SO-DIMM form factor allows space-saving hardware designs as well as quick and simple integration of the module into the target application.
The Mars ZX3 SoC module reduces development effort, redesign risk and improves time-to-market for your embedded system.
主要特性與優勢
- Built around the AMD Zynq 7020 SoC
- Combines the flexibility of a CPU system with the parallel processing power and real-time capabilities of an FPGA system
- Supports analog differential inputs
- Available in industrial and commercial temperature range
- Supports USB 2.0, CAN and Gigabit Ethernet
- Linux Board Support Package (BSP) and tool chain available
- A complete and powerful embedded processing system in the industry-standard SO-DIMM form factor
- Simple, low cost and yet rugged assembly
- Lowest power consumption due to the high-efficiency DC/DC converters
包裝內容物含配件
- 108 User IOs
- 3D STEP Model
- Gigabit Ethernet PHY
- I/O nets length
- Linux Board Support Package (BSP): Compile Linux with the Enclustra Build Environment with a few clicks
- Module Configuration Tool (MCT): Configure FPGA, program flash memory, read module information (type, serial number), monitor currents, configure real-time-clock (RTC)
- PCB Footprint
- Reference Design
- SO-DIMM Form Factor
- Single 3.3V Supply Voltage
- USB 2.0 OTG PHY
- Up to 1 GB DDR3 SDRAM
- Up to 16 GB quad SPI Flash
- Up to 64 GB NAND Flash
- User Manual
- User schematics
- Xilinx ZYNQ-7000 All Programmable SoC
